The electrocardiogram (ECG or EKG) remains one of the most fundamental diagnostic tools in modern cardiology, offering a non-invasive window into the electrical activity of the heart. While most patients and even some medical professionals focus primarily on the P-wave, the QRS complex, and the T-wave, the presence—or absence—of the U wave EKG can provide critical insights into underlying physiological conditions. Often subtle and sometimes overlooked, this small deflection following the T-wave represents a distinct phase of cardiac repolarization, and understanding its clinical significance is essential for accurate cardiac rhythm analysis.
What is the U Wave EKG?
In the context of an electrocardiogram, the U wave EKG is a small, low-amplitude wave that typically follows the T-wave. It is generally upright in most leads and is most prominently visible in the precordial leads, particularly V2 through V4. Because of its low voltage—usually less than 1mm—it is easy to miss if the EKG is not performed or reviewed with high attention to detail.
The exact physiological origin of the U wave has been the subject of debate for decades. Currently, the most widely accepted theory is that it represents the delayed repolarization of the Purkinje fibers. Other hypotheses suggest it may be related to the repolarization of the mid-myocardial M cells or perhaps even mechanical forces within the heart wall during the final stages of ventricular relaxation.
Clinical Significance of the U Wave
While a small, positive U wave can often be a normal finding, especially in patients with a slower heart rate (bradycardia), its morphology and amplitude can shift dramatically in the presence of certain pathological conditions. Identifying abnormalities in the U wave EKG is a cornerstone in diagnosing electrolyte imbalances and monitoring the effects of pharmacological interventions.

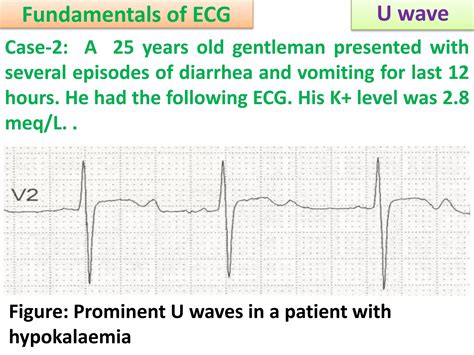

- Hypokalemia: This is perhaps the most classic association. As potassium levels in the blood drop, the U wave often becomes more prominent and may even fuse with the T-wave, creating a "pseudo-prolongation" of the QT interval.
- Bradycardia: In slower heart rates, the diastolic interval is longer, allowing more time for the Purkinje fibers to complete their repolarization, which can make the U wave more visible on the tracing.
- Drug Effects: Certain medications, including antiarrhythmics like Class IA and Class III agents (e.g., quinidine, procainamide, sotalol), as well as digoxin, can profoundly alter the appearance of the U wave.
- Central Nervous System Disorders: Increased intracranial pressure or cerebral hemorrhages have occasionally been linked to giant, inverted U waves, although this is a less common clinical finding.
Distinguishing Normal vs. Abnormal U Waves
Distinguishing between a benign physiological finding and a dangerous clinical marker requires an understanding of the patient's context. A normal U wave is generally smaller than the T-wave, moves in the same direction, and is absent in cases of high heart rates. Conversely, an inverted or significantly enlarged U wave is almost always a sign of underlying cardiac pathology.
| Finding | Clinical Association |
|---|---|
| Prominent/Enlarged U Wave | Hypokalemia, medication toxicity, ventricular hypertrophy |
| Inverted U Wave | Myocardial ischemia, coronary artery disease |
| Fused T-U Complex | Severe electrolyte imbalance, long QT syndrome |
💡 Note: When analyzing an EKG, always calculate the QTc interval carefully. If the U wave is large, it can be mistaken for a portion of the T-wave, leading to an incorrect assessment of the QT interval length.
How to Identify the U Wave on a Tracing
To accurately identify the U wave EKG, clinicians should look at leads where the T-wave is clearly defined. If you suspect an abnormality, follow these systematic steps:
- Ensure the EKG leads are placed correctly, as artifactual noise can sometimes mimic wave deflections.
- Assess the heart rate; if the patient is bradycardic, the U wave is naturally more likely to be seen.
- Check the T-wave morphology. If there is a distinct notch or a "hump" after the T-wave, it is likely a U wave.
- Review the patient’s latest metabolic panel, specifically focusing on potassium, magnesium, and calcium levels.
💡 Note: In cases where the U wave is not clearly separated from the T-wave, consider it a fused T-U wave, which may require immediate laboratory evaluation for hypokalemia or drug-induced repolarization abnormalities.
The Role of Electrolytes and Medications
The metabolic environment of the myocardium directly dictates the electrical signals recorded by an EKG machine. Potassium, in particular, plays a vital role in maintaining the resting membrane potential and the repolarization process. When potassium levels fall, the duration of the action potential is altered, which manifests as a widening or elevation of the U wave EKG.
Beyond electrolytes, many medications are known to influence cardiac repolarization. Physicians prescribing drugs that affect the QT interval—such as certain antipsychotics, antibiotics, or antiemetics—must be vigilant in monitoring the U wave. An exaggerated U wave can be a pre-cursor to more dangerous rhythms, such as Torsades de Pointes, a form of polymorphic ventricular tachycardia that can be life-threatening.
Advanced Monitoring and Diagnostic Challenges
In modern clinical practice, high-resolution EKG machines have made it easier to detect subtle waveforms, but the diagnostic challenge remains identifying when a U wave is a "normal variant" versus a "warning sign." In athletes, for instance, a U wave might be common and completely benign due to higher vagal tone and slower resting heart rates. In contrast, in a patient presenting with syncope or chest pain, the same wave morphology might demand an urgent investigation into coronary perfusion or serum electrolyte levels.
Furthermore, digital EKG interpretation software sometimes struggles to differentiate the U wave from the T-wave. These automated systems often include the U wave in their calculation of the QT interval, potentially triggering false alarms or, conversely, missing a dangerously prolonged interval that could lead to arrhythmias. Therefore, manual verification by a skilled clinician is mandatory when the U wave appears prominent or atypical.
Future Perspectives in Repolarization Analysis
As cardiac diagnostics move toward AI-driven analysis, our understanding of the U wave EKG continues to evolve. Emerging research suggests that the dispersion of repolarization, which includes the U wave phase, may hold clues to predicting sudden cardiac death even in patients with otherwise "normal" EKG readings. By utilizing long-term Holter monitoring and advanced signal processing, cardiologists hope to better quantify the risk associated with repolarization abnormalities, potentially allowing for earlier intervention in high-risk patients.
Ultimately, while the P, QRS, and T waves command the most attention on an EKG, the U wave acts as an important, albeit quiet, indicator of the heart’s recovery phase. Paying attention to its presence, shape, and size empowers medical professionals to uncover subtle metabolic or drug-induced abnormalities that might otherwise go undetected. Through careful observation and an integrated clinical approach, the U wave EKG serves as a valuable tool in the ongoing effort to ensure optimal cardiac health and safety for patients across all demographics.
